Link text

You can hyperlink text to point to another Gliffy diagram or attachment in your Online instance or to a website URL.

Hyperlinks are active when viewing the published diagram on a Online page, exported as SVG, or published as an embedded diagram.

The link navigator lets you search for any page on any wiki in your Online instance, browse the Online pages that you have recently viewed, link to attachments on the current Online page, link to page content (sections formatted as h1, h2, etc.) on the current page, or set up a Web link to any URL.

1. In your diagram, double-click the text to highlight the words you want to turn into an active link.

2. In the toolbar, select Create Link . Or, select the Text Properties button, and then the Insert/Edit Link button.

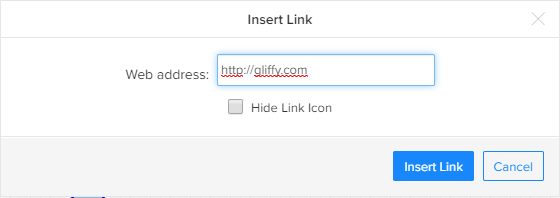

3. In the Insert Link window, paste or enter the website's URL address.

4. Select Insert. After inserting the link, the text is blue and underlined.

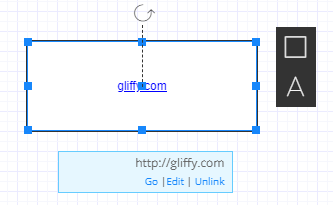

5. Select the shape to show the link destination, go to the link, edit the link, or unlink.
